COMPLETE TORQEEDO DEEP BLUE HYBRID PROPULSION SYSTEM – 2 × 50 kW MOTORS + 2 × 80 kWh BATTERIES
Complete Torqeedo Deep Blue Hybrid propulsion system, including:

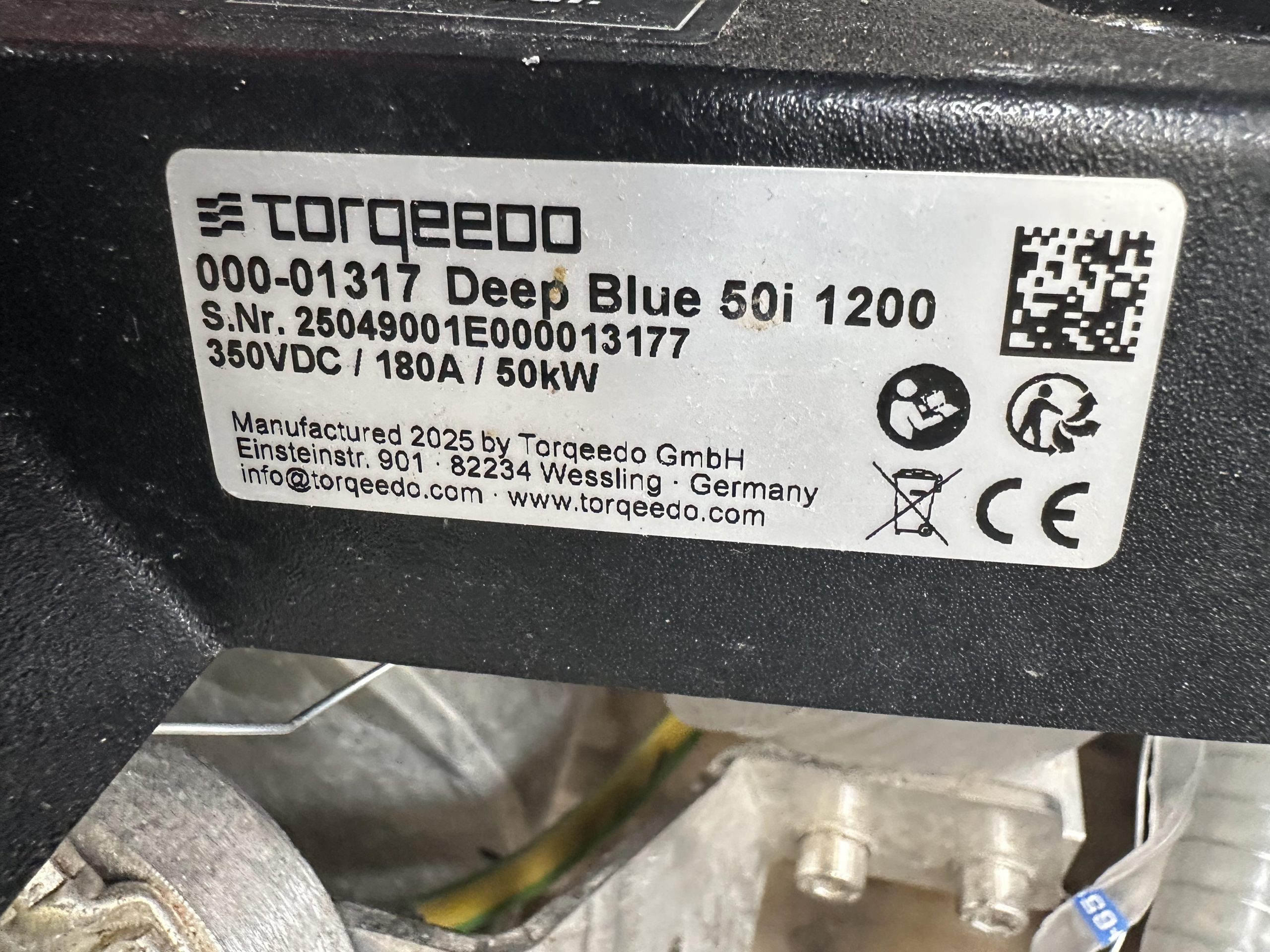

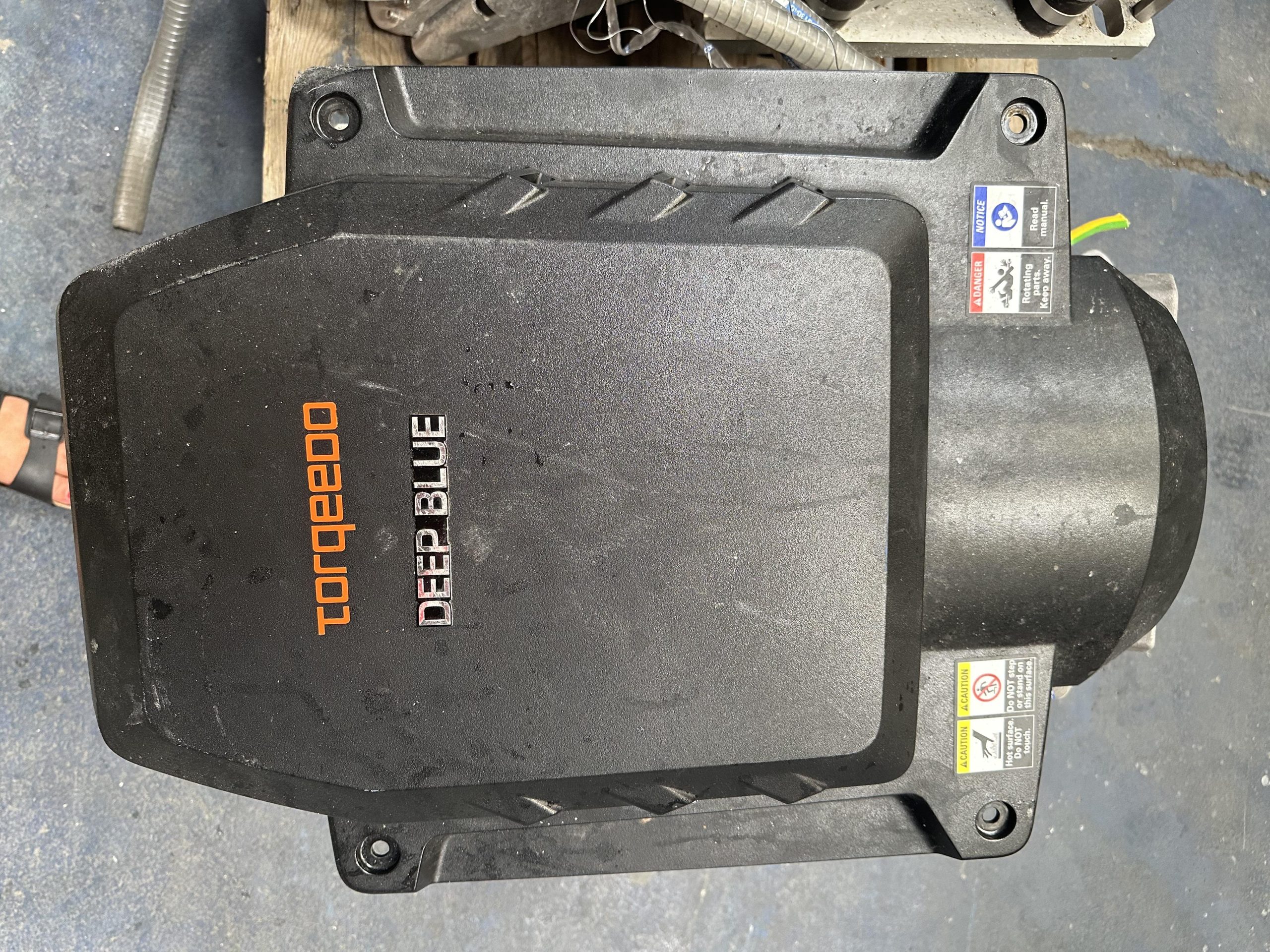

• 2 × Torqeedo Deep Blue 50i 1200 – 50 kW each

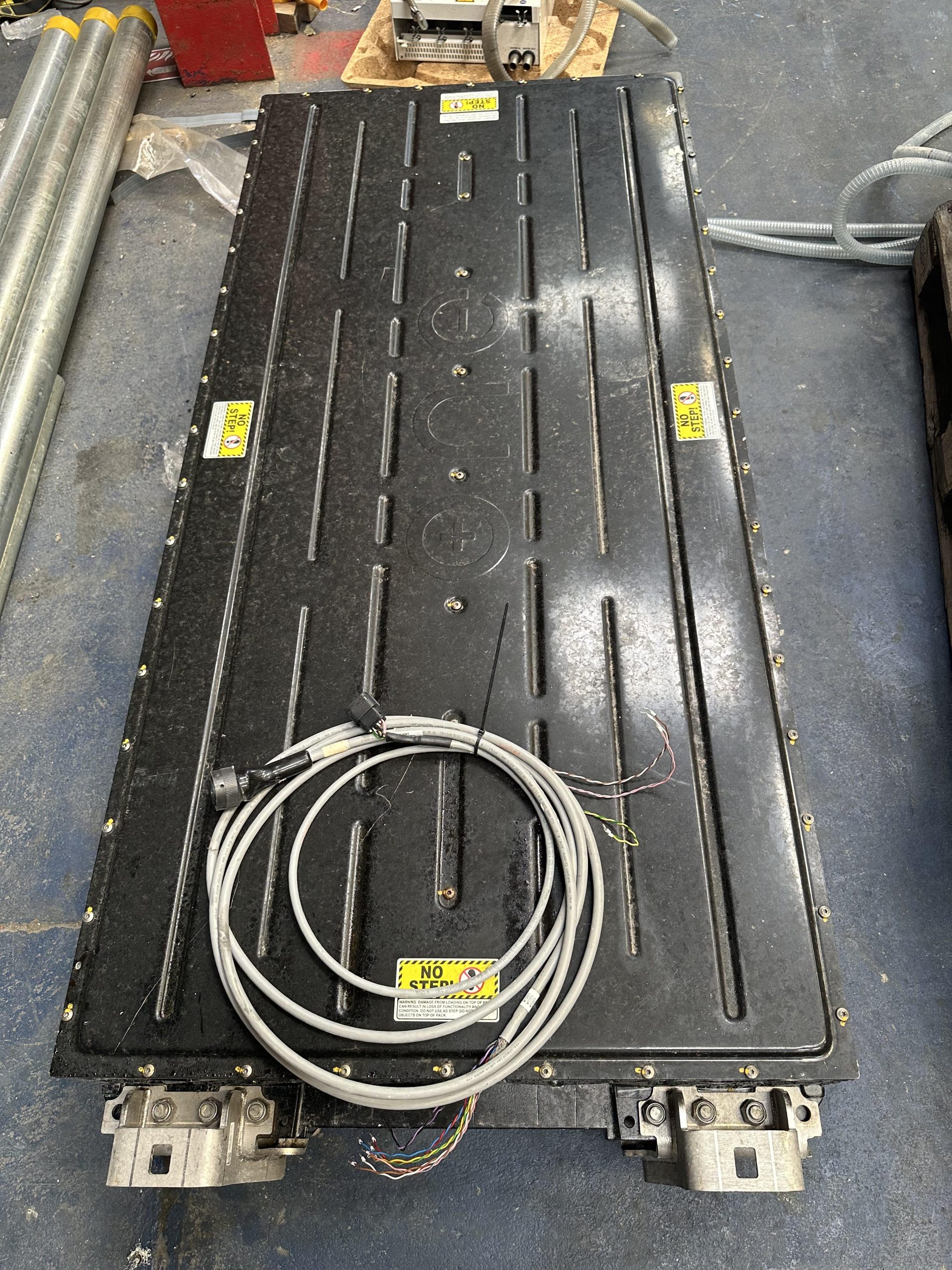

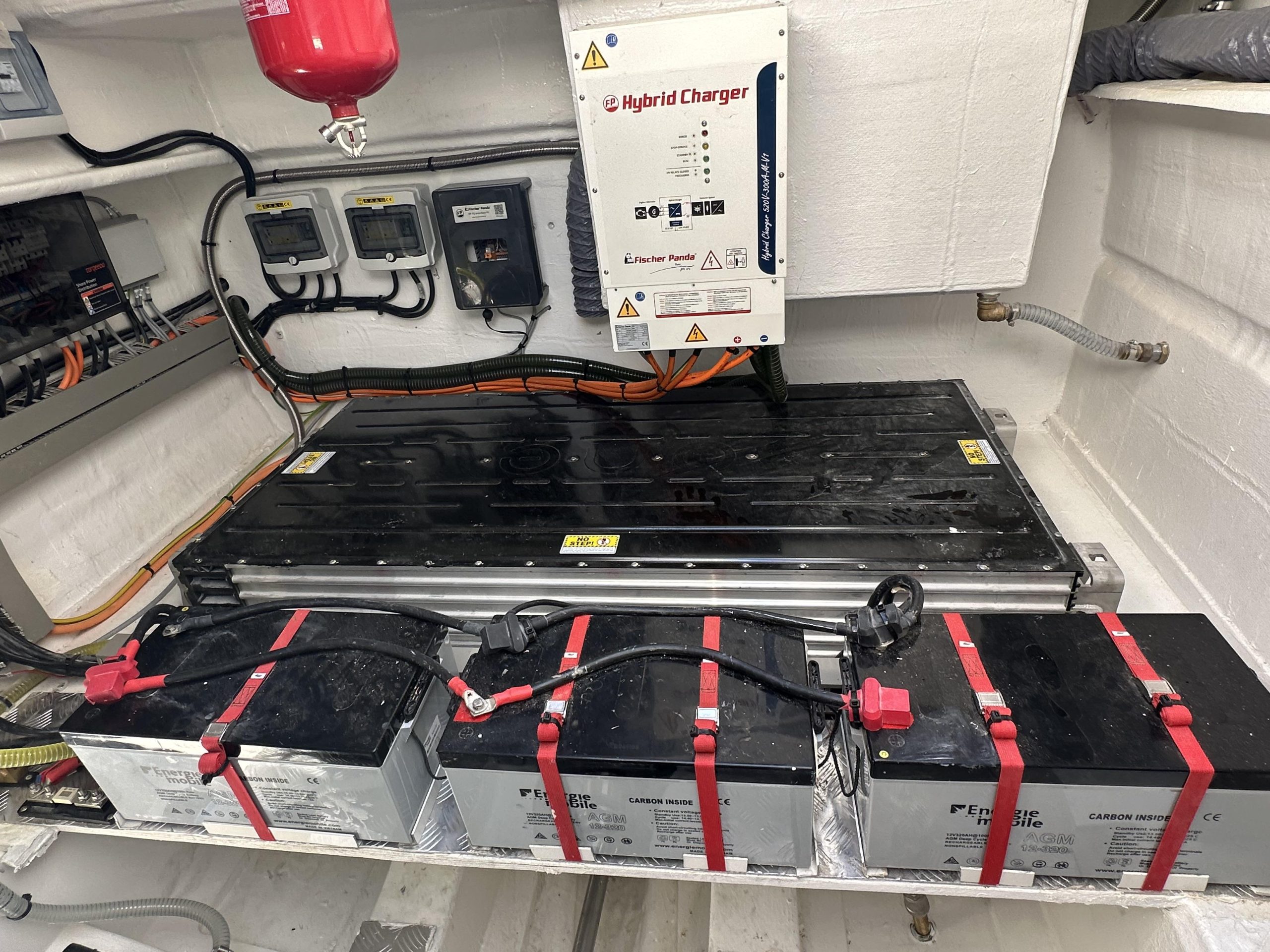

• 2 × Torqeedo Deep Blue Battery 80 – 77.6 kWh usable each

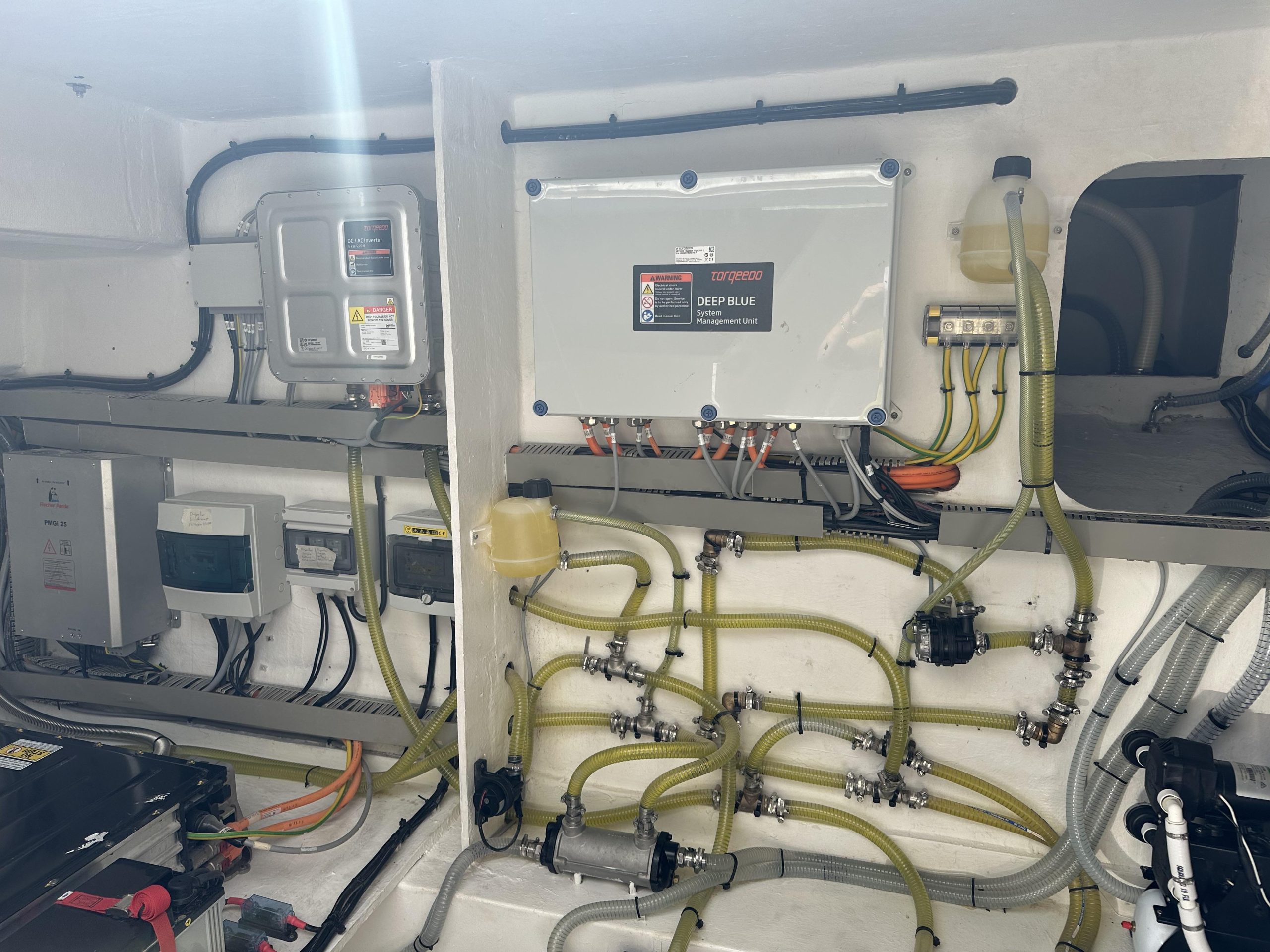

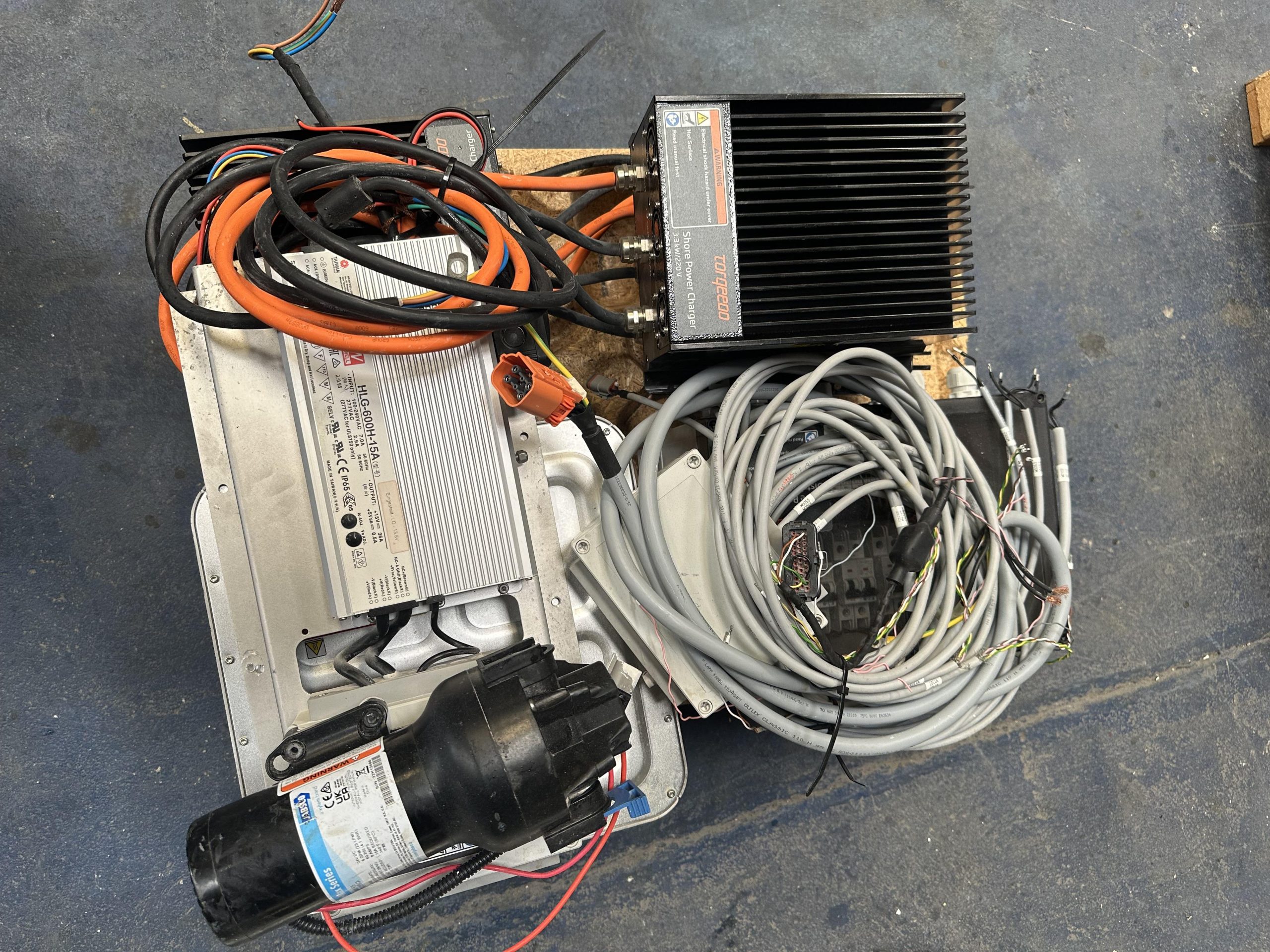

• 2 × System Management Units
• 2 × 3.3 kW chargers

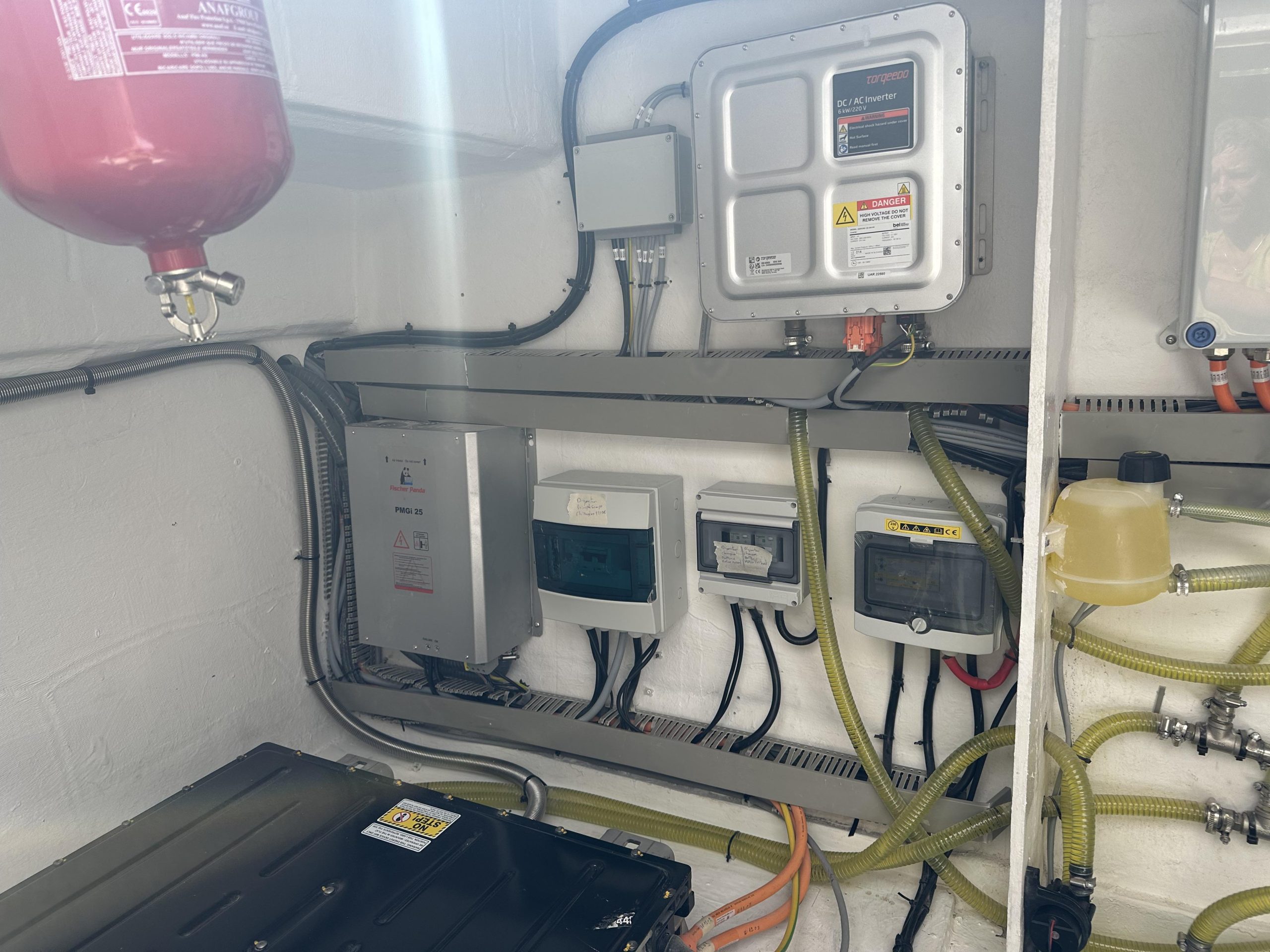

• 6 kW DC/AC inverter

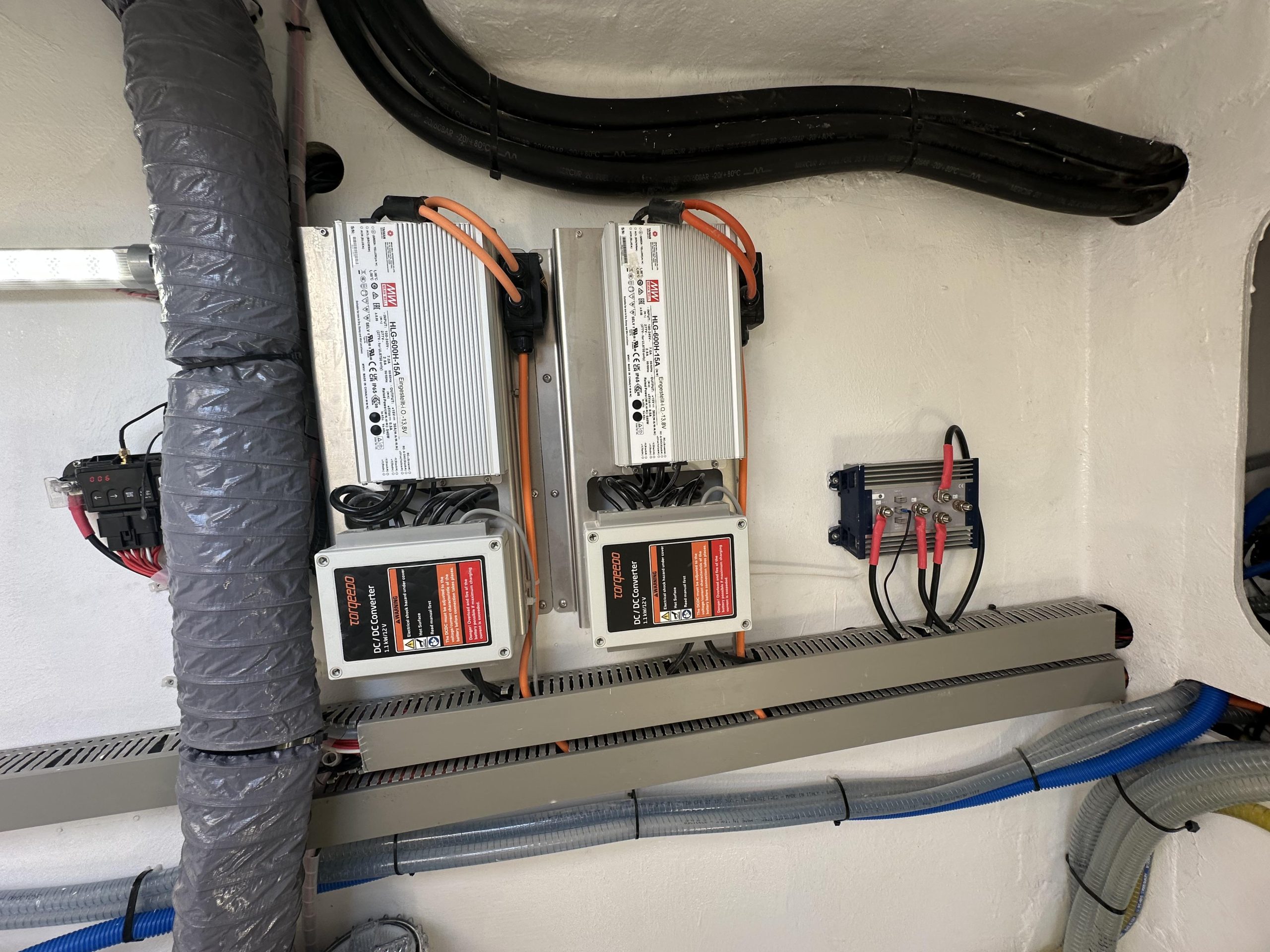

• DC/DC converters
• Twin electronic throttle controls
• Deep Blue 7″ touchscreen display
• Deep Blue router

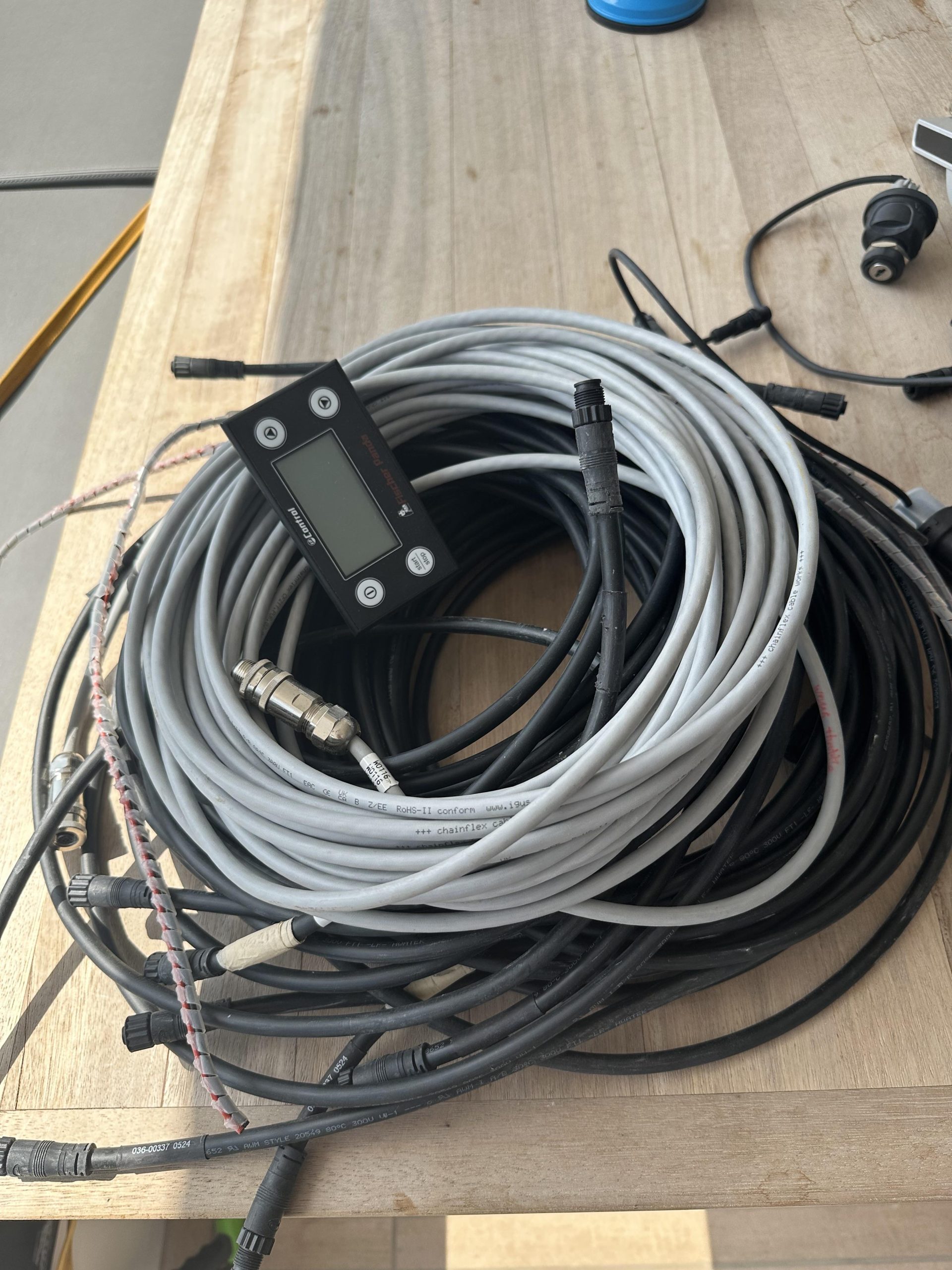

• HV cabling and system accessories

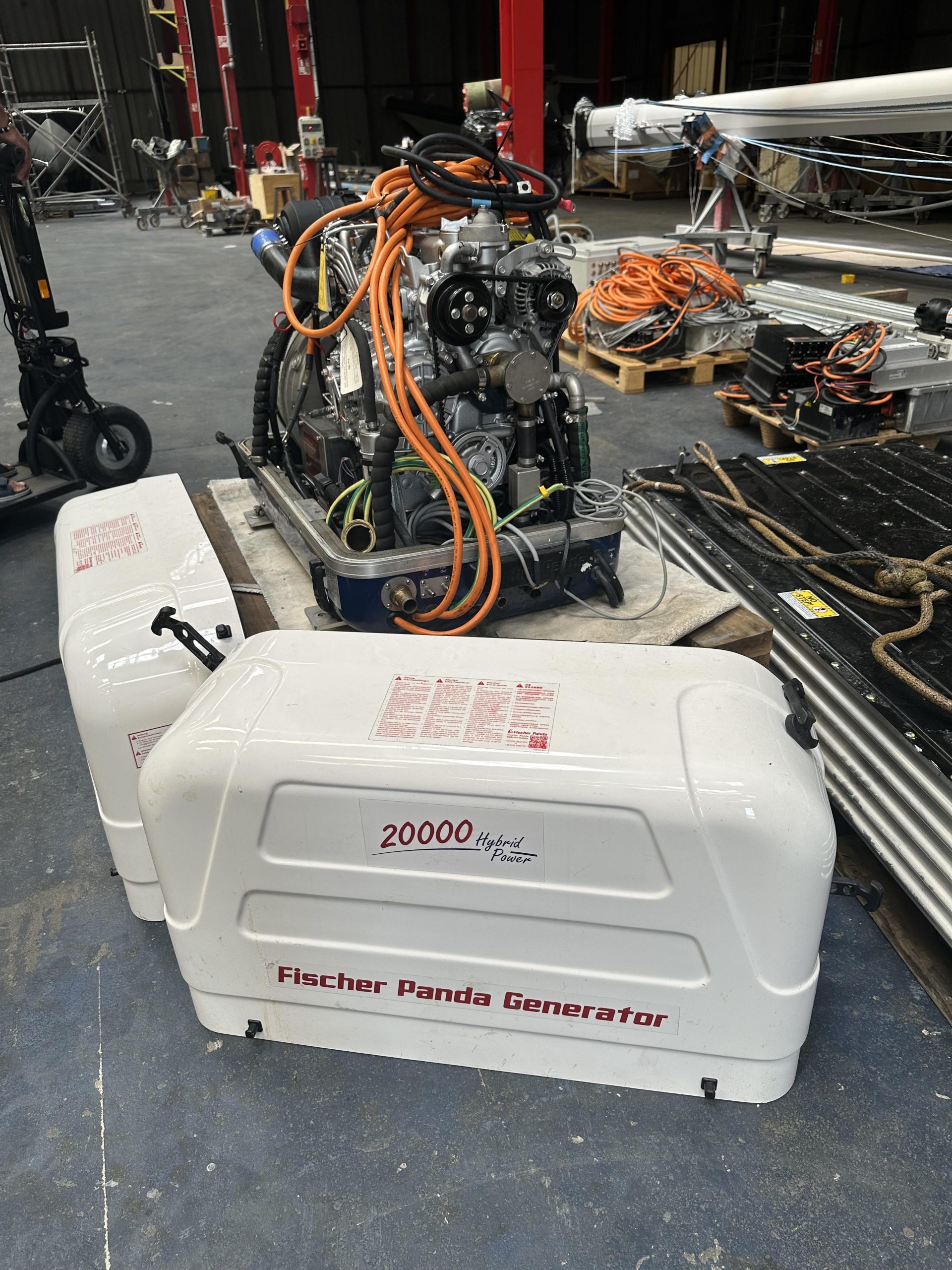

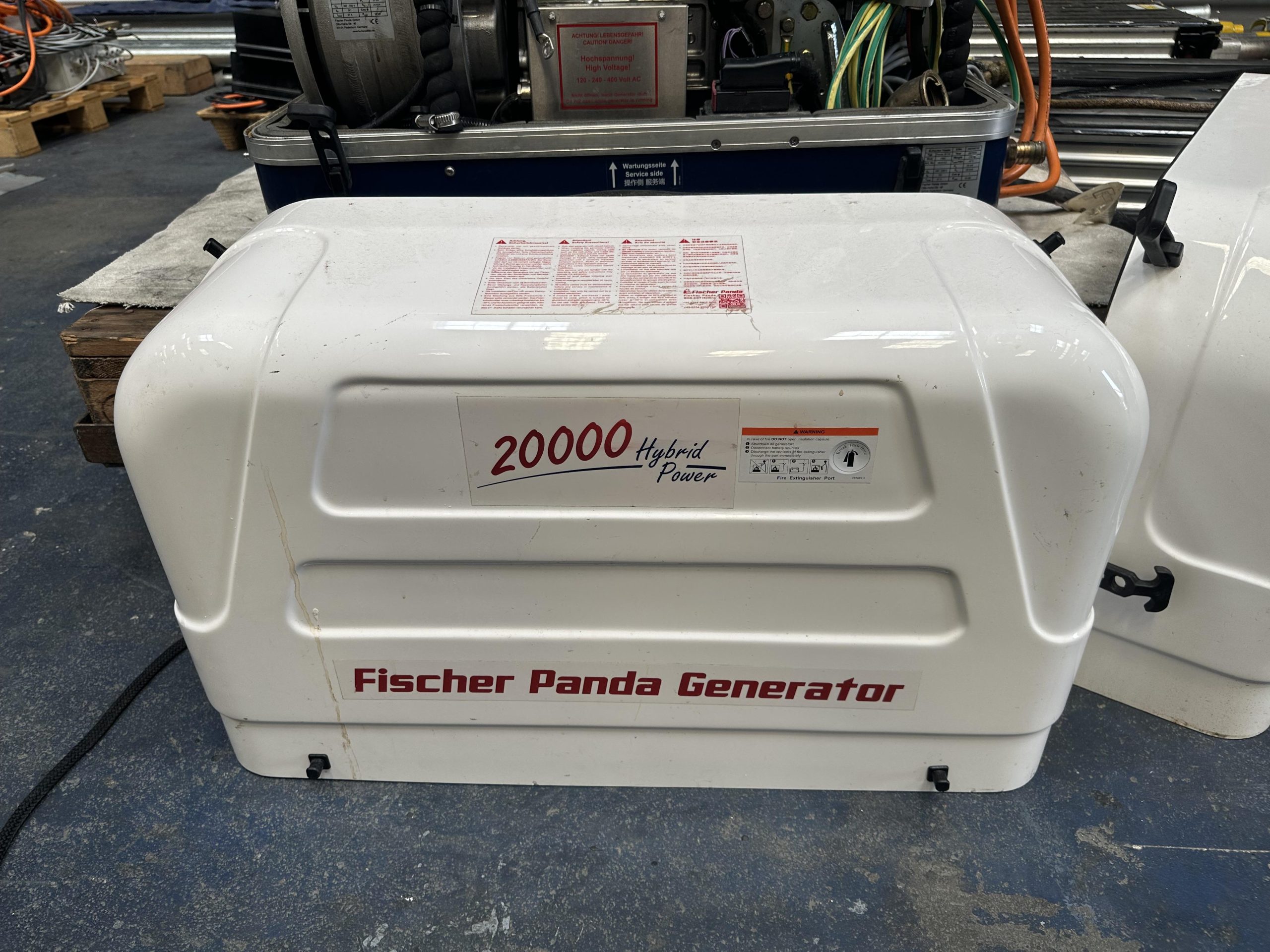

• Fischer Panda Panda 20-VS 20 kW variable-speed DC generator
Commissioned in August 2025 and used for less than 200 operating hours.
Torqeedo Field Service diagnostic performed in July 2026: 100% State of Health on both propulsion batteries, no active faults and no detected capacity degradation.
Complete system removed from a catamaran and currently stored in Cogolin, South of France.
Asking price: €105,000
VAT and customs duties are not included and will depend on the buyer’s status and the physical destination of the equipment.
- Listing ID: 45121
- Price: 105'000 euros
- Condition: Previously Owned
- Year: 2025
- Motor Type: Inboard
- Motor Manufacturer: Torqeedo
- Motor Model: Deep Blue 50i 1200 - 2 motors
- Motor Hours: < 200 hours
- Input power: 50 kW
- Motor Voltage: 350 V DC
- Output power: 50 kW
- Peak Power Output: 55.1 kW
- Continuous Power: 50 kW
- Propulsive Power: > 32,4 kW
- Comparable gas/petrol HP: 80 HP equivalent per motor
- Torque: 390 Nm
- Static Thrust: N/A
- Motor Efficiency: > 54% overall system efficiency
- RPMs: 1200 rpm
- Shaft Length: N/A
- Propeller: N/A
- Throttle: Remote
- Throttle: More Info: Twin electronic remote throttle controls included. Complete Deep Blue control system.
- Steering: Remote
- Steering More Info: Inboard steering integrated with vessel steering system.
- Motor Weight: 90 kg each
- IP Rating: IP67
- Battery Weight: 562 kg each
- Battery Dimensions: 1800 x 853 x 236 mm each
- Motor Technology: IPMSM (Interior Permanent Magnet Synchronous Motor)
- Cooling: Liquid
- Voltage: 348 V
- Amps/Current: 180 A max.
- Battery: Separate
- Battery Chemistry: LiFePo4 (LFP)
- Battery Capacity: 77.6 kWh usable / 79.2 kWh nominal - 2 batteries
- Battery More Info: 2 × Torqeedo Deep Blue Battery 80. 77.6 kWh usable / 79.2 kWh nominal each, 348 V, LFP, IP67. Total usable capacity: 155.2 kWh.
- Charger: Yes
- Charger Type/Model: 2 x Torqeedo 3.3 kW chargers
- Charge Time: Standard: Approx. 24h per battery at 3.3 kW
- Cables: Included
- Connectors: Included
- Controller: Yes
- Battery Monitor: Yes
- GPS: Yes
